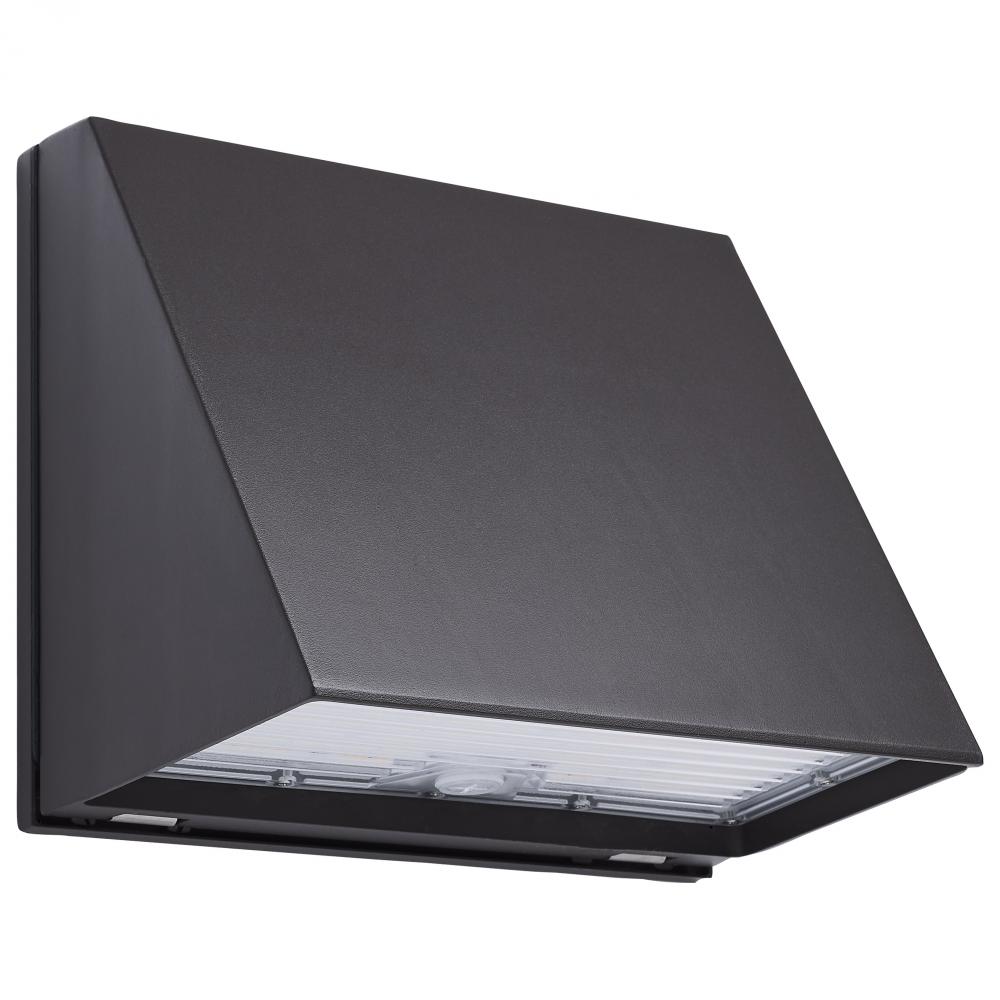

80/100/120 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt (65/556)
by Nuvo
80/100/120 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt
Product Specification
Item #
65/556
Dimensions
Height: 9.36"
Width: 13.28"
Additional product details
Vendor Item #
65/556
Option
LED
, Prop 65
Category
Wall Pack
Sub Category
Full Cutoff
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Soft White to Natural Light
Dimmable
Yes-Dimmable
Each Height
9.449999999999999
Each Length
15.35
Each Width
14.06
Lumens
12107L-17789L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.667-0.231/0.833-0.288/1.000-0.346A
ANSI Base
Integrated
Beam Angle
106
B_U_G_Rating
B2-U0-G2
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80+
Dimmable Function
0-10V Dimming
DLC Classification
Premium
DLC Primary Use
Outdoor Full-Cutoff Wall-Mounted Area Luminaires
Each Cube
1.1803
Each Quantity
1
Efficacy
201.78-206.25/180.69-187.49/170.59-177.89 LPW
FCC Compliant
Yes
Feature 1
Full Cutoff with Zero Uplight
Feature 10
5 Year Warranty
Feature 2
B2-U0-G2 Rating
Feature 3
CCT and Wattage Selectable
Feature 4
Integrated Sensor Port
Feature 5
Integrated By-passable Photocell
Feature 6
Range Voltage 120-347V
Feature 7
IP65 Rated
Feature 8
Bronze Die-Cast Aluminum Housing
Feature 9
50,000 Hour Functional Life
Finish Family
Bronze
Flicker Free
No
Has Driver
No
HID Equiv
400W
Impact Rating (IK)
IK06
Indoor Outdoor
Outdoor
IP Rating
IP65
Lens Finish
Opaque
Lens Material
Polycarbonate (PC)
Long Description
Illuminate outdoor spaces with SATCO NUVO's 65-556 architecturally styled LED Full Cutoff Wall Pack. Operating on 120-347V with zero up light, this fixture features wattage selectability of 80W, 100W, and 120W, delivering a maximum output of 17,789 lum
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Order In Multiples Of
1
Pack Type
Box
Photocell
Yes - Bypassable
Power Factor
>0.9
Quantity In Pack
1
R9 Value
7
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Illuminate outdoor spaces with SATCO NUVO's architecturally styled LED Full Cutoff Wall Packs. Operating on 120-347V with zero up light, these cutoff wall packs are perfect to eliminate wasted light and to cut down on light pollution. A by-passable pho
Safety Listing
cULus
Sensor Operating Temperature
-25C(-13F) to +50C (+122F)
Sensor Type
PIR
Short Description
LED FULL CUTOFF WALL PACK
Specification Notes
Type II Light Distribution; For International Dark Sky Compliance the fixture CCT must be set to 3000K and installed in a downward facing and locked position
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Weight Lb.
9.74
